Solid fuel boilers

Boilers of KUPER TM are intended for heat supply in premises equipped with hot-water heating system of any type (open, closed, open with pump). They are produced out of steel 3 mm in thickness with the use of cast iron grates.

All types of solid fuel may be used in the boilers, but with the relevant adjustment of power. Optimum fuel: firewood, charcoal, briquettes.

Production tests defining the absence of leaks under the pressure of 2 atm. 30 months warranty.

Technical specifications:

No.	Name	Indices
No.	Name	KUPER–15	KUPER–15П	KUPER–18	KUPER–18П
1	Nominal power, kW	15	15	18	18
2	Heated area, m2, up to	135	135	165	165
3	Heat transfer fluid (water) volume in boiler, litre, minimum	39	34	47	43
4	Energy conversion efficiency during heating, %, minimum	75	75	75	75
5	Heat transfer fluid’s effective temperature, °С	min 60 °С – max 90 °С
6	Effective operating pressure, MPa	0,1 MPa (1 atm)
7	Maximum operating pressure, MPa	0,2 MPa (2 atm)
8	Black coal consumption, kg/h	1,6	1,6	1,6…4,0	1,6…4,0
9	Flue’s external diameter, mm	170х90
10	Flue’s minimum height, from grate level to upper section of tube, m	6 metres
11	Inlet and outlet branch pipes diameter	G2 (external – Ø60mm; nominal size – Ø50mm)
12	Overall dimensions, mm: height width lenght	710 360 710	710 360 710	810 360 710	810 360 710
13	Mass, kg	64	67	70	74
14	Price, UAH	5300	5300	5900	5900

№	Name	Indices
№	Name	KUPER–15LUX	KUPER–15ПLUX	KUPER–18LUX	KUPER–18ПLUX
1	Nominal power, kW	15	15	18	18
2	Heated area, m2, up to	135	135	165	165
3	Heat transfer fluid (water) volume in boiler, litre, minimum	42	37	50	46
4	Energy conversion efficiency during heating, %, minimum	75	75	75	75
5	Heat transfer fluid’s effective temperature, °С	min 60 °С – max 90 °С
6	Effective operating pressure, MPa	0,1 MPa (1 atm)
7	Maximum operating pressure, MPa	0,2 MPa (2 atm)
8	Black coal consumption, kg/h	1,6	1,6	1,6…4,0	1,6…4,0
9	Flue’s external diameter, mm	130	130	150	150
10	Flue’s minimum height, from grate level to upper section of tube, m	6 metres
11	Inlet and outlet branch pipes diameter	G2 (external – Ø60mm; nominal size – Ø50mm)
12	Overall dimensions, mm: height width length	710 390 710	710 390 710	810 390 710	810 390 710
13	Mass, kg	68	71	74	78
14	Price, UAH	5900	5900	6400	6400
*15	Price, UAH (heating element)	6100	6100	6600	6600

*Model with place allocated for a heating element. The boiler’s construction stipulates the place for the installation of electric heater.

With the help of additional modules, each KUPER® boiler may be automatized at any moment: both during purchase and any other time after it. During 10 minutes, it is possible to equip a boiler with any of modules or their combination: fan, controller (microprocessor), heat controller, as well as any type of sensors, valves, manometers. Automatization of a boiler increases energy conversion efficiency, saves up to 30% of fuel, increases operating safety of heating system. Moreover, automatization makes it possible to apply low-grade fuel, which may be used for heating only under the active air injection with a fan.

Additional modules are uniform and may be used with absolutely all models of KUPER®.

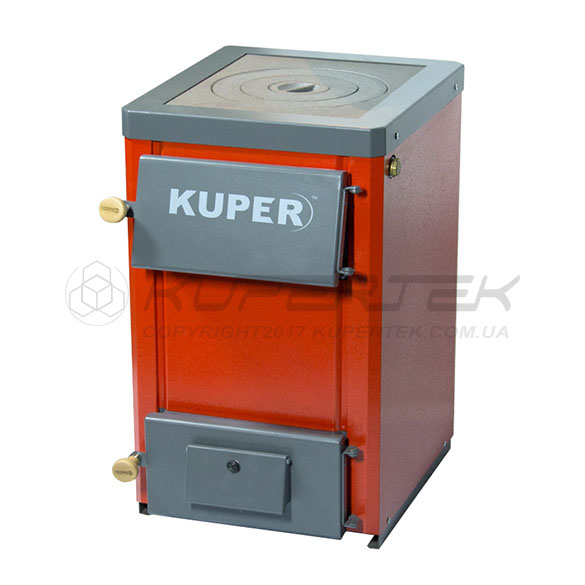

котел на твердом топливе Купер-15П Люкс
