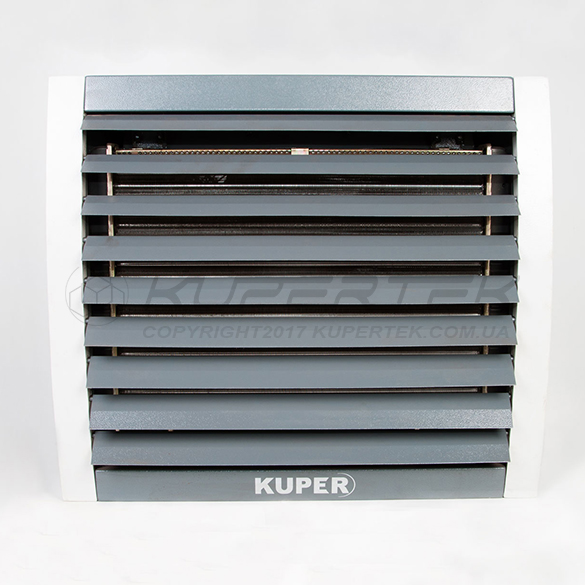

Fan heaters with water heat exchanger (air heating units) KUPER ТМ are intended for heating office, administrative, warehouse, industrial and other premises equipped with hot-water heating system.

The concept of fan heater is as follows:

Heat transfer fluid (hot water) gets into the heat exchanger. Heat transfer fluid gives heat through the heat exchanger with very extensive heat-exchange surface. High-performance axial fan intakes air from premises and passes it through the heat exchanger in order to direct already heated air back to premises.

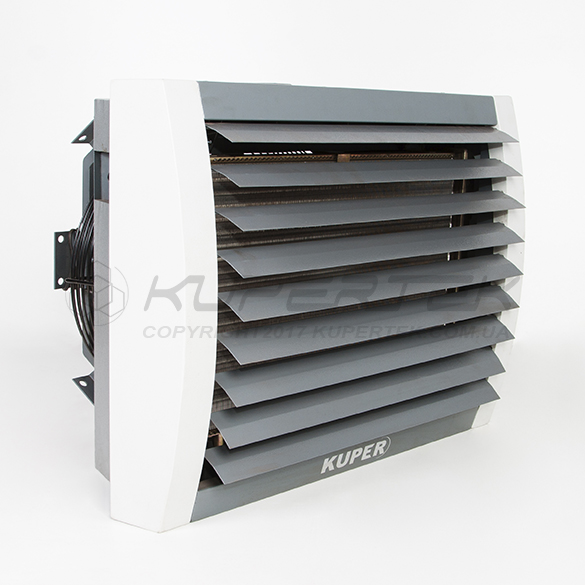

Technical specifications of fan heater Kuper-30T:
1.   Power – 30 kW
2.   Heat transfer fluid (water) volume in heat exchanger – 4.5 l
3.   Heat transfer fluid’s maximum temperature – 95°C
4.   Maximum operating pressure – 1.6 MPa
5.   Maximum air consumption – 5,500 m3/h
6.   Inlet and outlet branch pipes diameter – G3/4
7.   Overall dimensions, mm: height – 610 mm; width – 695 mm; length (without bracket) – 320 mm; length (with bracket) – 490 mm
8.   Mass without water – 30 kg
9.   Supply voltage – 220 V
10. Maximum electric current – 1.2 A



Водяной тепловентилятор Купер-30ТТепловентилятор KUPER-30Tводяной тепловентилятор Купер

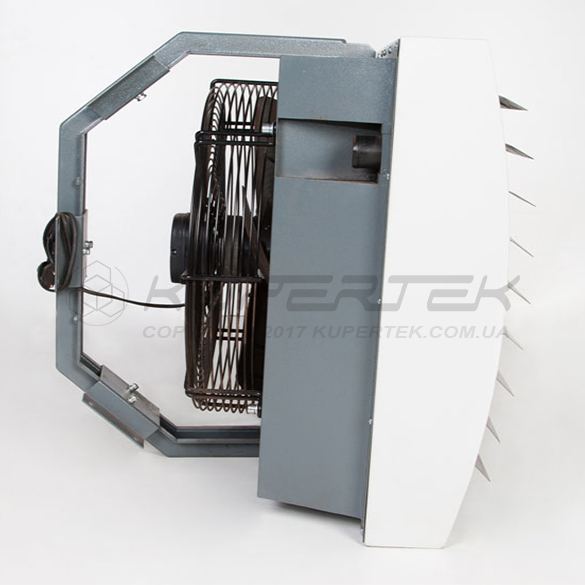

Undeniable advantage of our fan heater during installation in industrial premises is that it has a metal housing and metal shutters. Galvanized metal 1.2 mm (housing parts) and 0.8 mm (shutters) in thickness has a polymer coating. A customer is able to choose any of RAL colours. We use double-row heat exchanger. Heat transfer fluid volume in heat exchanger is 4.5 l.
